| 技術規格 |
| 型 號 |

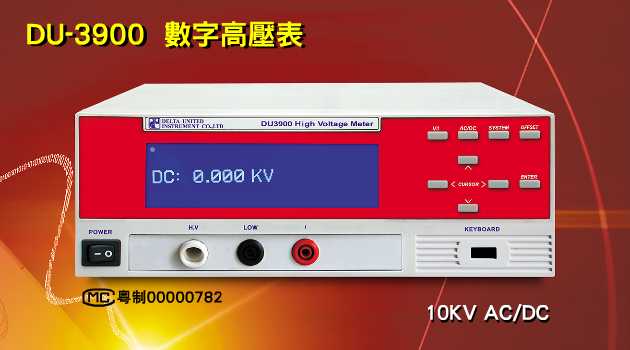

DU-3900 / DU-3901 |
| 電壓 |
直流電流 |
測範圍: 0.100 to 10.000kV
準確度: ±(0.5% rdg + 0.03% range)
最大允許輸入電壓: DC: ±14kV , Pulse: 15kV peak
輸入阻抗值: 200MΩ. ± (1.0%)
量測速度: 3 meas. / sec. |
| 交流電流 |
量測範圍: 0.100 to 10.000kV
準確度±(1% rdg + 0.05% range)
最大允許輸入電壓:
11kVrms (sine wave 50 to 60Hz), Pulse: 14kV peak
輸入阻抗值: 200MΩ. ± (1.0%)
量測速度: 3 meas. / sec. |
| 電流 |
直流電流 |
量測範圍: 200.00uA/2.0000mA/20.000mA/200.00mA 4 ranges
準確度: ±(0.5% rdg + 0.03% range)
最大允許輸入電壓:
1000V
最大輸入電流:: 200 mA
量測速度: 3 meas. / sec. |
| 交流電流 |
量測範圍 :2.0000mA/20.000mA/200.00mA 3 ranges
準確度: ±(1% rdg + 0.05% range)
最大允許輸入電壓:
1000V
最大輸入電流:: 200 mA
量測速度: 3 meas. / sec. |
| 一般規範 |
| 觸發模式 |
Internal、External |
| 顯示器 |
240 * 64 Graphic display, 4 1/2 digitals |
| 即時時鐘 |
Real Time Clock. |
| 比較功能 |
V/I standard value & Hi-Lo % limits. OK/NG Judgment &
indication with alarm |
| 校正功能 |
Software and adjustments are made through the front panel. Automatic Calibration
Alert function to signal operator when re-calibration is due. |
| DU-3901 only |
記憶體: Up to 100 sets of memory.
介面卡: RS-232 & Handler Two interface features combined together. |
| 輸入電源 |
115/230 V ± 10%, 50/60 Hz |
| 功率消耗 |
約25 VA |
| 尺寸 |
270(寬) x 110(高) x 310(深) mm |
| 重量 |
Approx 3.5kg |
| 標準配件 |
高壓測試線(紅/黑) 1套, 電源線, 操作手冊, 校驗證明 |
